Manufactured in Germany, WBT connectors are designed specifically for the high-end audio industry. The product line has expanded from that first RCA type plug to include male and female RCA type connectors, binding posts, banana plugs and spade lugs with functionally unique features that truly elevate them to the top. WBT products are very popular with audio cable and equipment manufacturers worldwide and can be found as standard equipment on many well respected brands. Additionally, WBT currently holds more than 20 patents pertaining to audio connectors.
Speaker Terminations
Featuring unrivaled engineering and design principles, WBT's line of speaker connectors is unlike any other. From the elegant design of the WBT-0645 banana to the quality heft of the WBT-0702, WBT speaker products are the last word for music, function and safety.
Tools and Finishing Touches
WBT tools and finishing touches have been painstakingly developed to both functionally and aesthetically complement WBT connectors and provide options for connector installation.
|
WBT BANANA PLUGS
WBT banana plugs feature expanding tips for the ultimate in secure connection. No wimpy springs to break or weak connectors to bend. In short, nothing to fail. With WBT bananas on your cables you just relax and enjoy. The WBT-0645 banana is considered by many to be the finest banana the world has seen. Fully insulated with Makrolon® plastic to meet CE regulations, the WBT-0645 features an angled design that allows the cable to fall away from the component with no sharp bends. WBT crimp technique termination only.
|
WBT-0645
Angled Banana Plug
Gold plated brass (52%CU)
|
|
- New thread pitch for faster, more secure fastening.
- Innovative banana plug approved worldwide as a loudspeaker cable connector due to the safety pin design (International Patent Pending).
- Fully insulated, high clamping power via expanding inner spike.
- Easy one hand operation.
- Extremely compact, sloping angle is easy on cable and equipment.
- The WBT-0645 is stackable for bi-wiring.
- Two Torx™ screws (T-6) for extra-tight pressure connection and additional cable strain relief.
- Color code: red or white.
- Easy fit for wire size up to 8awg.
|
WBT Sandwich Spades are fully insulated and CE approved with an integrated elastomer housed in a non-magnetic, stainless steel shell. The elastomer damps vibration while the stainless steel adds rigidity to the spade. Available in either pure copper or fine silver and in 6mm (1/4") and 8mm (5/16") sizes. WBT crimp technique termination only.
|
|
|
- 5/16" / 8.1mm Sandwich spade connector.
- High current spade lug with elastomer shock absorber for progressive contact pressure eliminating structure-born and air-born noise as well as magnetostriction.
- Fully insulated body is safe to use and conforms to international safety standards.
- Color code: red or white.
- Easy fit for wire size up to 8AWG.
- Pure OFC copper contact is direct gold-plated
- Torx size 6 needed for installation.
|
WBT-0680-AG
Platinum Plated Pure Silver
Sandwich Spade
|
|
- 5/16" / 8.1mm Sandwich spade connector.
- High current spade lug with elastomer shock absorber for progressive contact pressure eliminating structure-born and air-born noise as well as magnetostriction.
- Fully insulated body is safe to use and conforms to international safety standards.
- Color code: red or white.
- Easy fit for wire size up to 8AWG.
- Fine silver contact is direct platinum plated.
- Torx size 6 needed for installation.
|
A binding post from WBT is truly a functional work of art and a symbol of quality. It is no wonder WBT binding posts are found as OEM parts on some of the world's finest audio equipment. WBT binding posts are a true five-way design and will accept 6mm (1/4") or 8mm (5/16") spades, 4mm bananas, bare wire or wire prepared with a WBT crimp sleeve (up to 6mm [10 AWG]). The two-piece tightening nut feature ensures secure attachment of spades without a wrench. In addition, the posts offer dual termination (solder or WBT crimp technique termination) to suit your needs. WBT binding posts are available in midline and topline versions to fit every budget. WBT binding posts can be mounted in panels a minimum of .8mm (1/32") thick and a maximum of 10mm (1/2") thick with the proper mounting insulation.
|

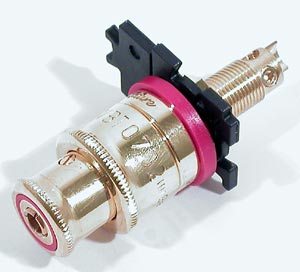

WBT-0702.11
Topline "Signature Series" Gold Binding Post
|
|
- Highly polished gold version
of the 0702.01.
- 400A continuous current. The ultimate pole terminal for demanding applications.
- Patented clamping mechanism for high compression connection of spade connectors and crimped wire ends up to 10awg.
- Patented locking device for banana plugs.
- New milled groove on both sides of compression plates for high strength connection of spades.
- Color code: red, white or black.
- Can be soldered or crimped.
|

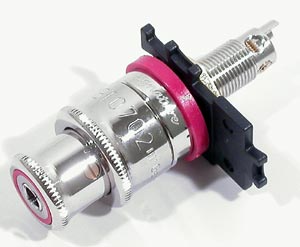

WBT-0702.12
Topline Signature Series Platinum Binding Post
|
|
- Highly polished platinum version
of the 0702.01.
- 400A continuous current. The ultimate pole terminal for demanding applications.
- Patented clamping mechanism for high compression connection of spade connectors and crimped wire ends up to 10awg.
- Patented locking device for banana plugs.
- New milled groove on both sides of compression plates for high strength connection of spades.
- Color code: red, white or black.
- Can be soldered or crimped.
|
WBT-0735
Topline "Safety Line" Binding Post
|
|
- Fully insulated, safety version of WBT-0730.
- Easily crimped or soldered.
- Color code: red, white or black.
|
WBT-0765
Midline "Safety Line" Binding Post
|
|
- Fully insulated, safety version of WBT-0763.
- Color code: red, white or black.
- Torx size 6 set screw not included.
|
WBT-0763
Midline Binding Post
|
|
- Single pole terminal suitable for 200A continuous current.
- With patented clamping mechanism for high compression connection of spade connectors and crimped wire ends up to 10awg.
- Accepts 4mm banana plug, 6mm or 8mm spades.
- Can be soldered or crimped by purchasing set screw.
- Color code: red, white or black.
- Torx size 6 set screw not included.
|
WBT-0780
Economy Binding Post
|
|
- Designed out of one solid piece of brass.
- The clamping nut is built of one piece and offers an excellent grip.
- Accepts 4 mm banana plugs, spades of 6 and 8 mm, and crimped cable ends up to 10AWG.
- Unique velours chromium finish.
- Color code: red, white or black.
|
To make installation of WBT connectors as effective, simple and efficient as possible, WBT has developed tools for each aspect of your project. Using WBT tools will optimize installation and allow the full rewards of WBT connectors to be reaped-quickly and easily. For example, when installing WBT connectors on speaker cable, use the WBT-0499 to cut and strip the cable to length. Next, slip on the appropriate crimp sleeve and use the WBT-0403 crimping pliers to complete the sleeve installation. Trim the cable/sleeve assembly to length with the WBT-0499 and install the cable into the desired connector using the WBT-0481 or WBT-0488. Simple! The list of tools includes: CCS installation tools, crimping pliers and kits, Torx™ key, cable cutters, torque screw driver and assorted bits.
|
WBT-T6-SETSCREW
Set Screw - 7mm
|
|
- T6 size set screw for use with WBT parts.
|
WBT-0488
Torx Key
|
|
- T6 size Torx key fits all WBT parts.
|
WBT-0403
Crimping Pliers
|
|
- Crimping pliers with special multiple spike jaw.
- The only tool designed to correctly crimp WBT™ crimp sleeves.
- Gold-plating protects against corrosion.
- Comfortable, plastic-coated grip.
|

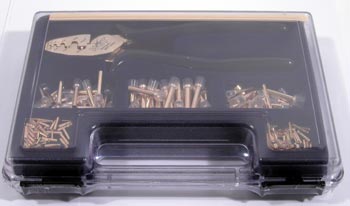

WBT-0411
Crimp Kit
|
|
- Includes WBT-0403 crimping pliers and an assortment of crimp sleeves in a convenient carrying case.
|
WBT-0450
Silver crimp sleeve-single
|
|
- 1.5mm/16awg insulated silver crimp sleeve.
|

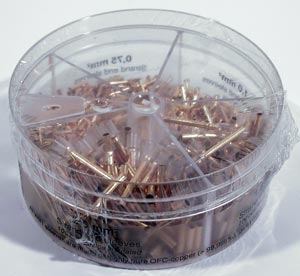

WBT-0470
Bulk Crimp Sleeves 0.5mm - 2.5mm
Quick Reference Quide
|
|
- Assortment of crimp sleeves in five sizes
- 0.5 mm [250 pcs]
- 0.75mm [250 pcs]
- 1.0mm [150 pcs]
- 1.5mm [100 pcs / 50 pcs insulated]
- 2.5mm [100 pcs/ 40 pcs insulated]
|
WBT-0820
WBT Silver Solder- medium spool
|
|
- Highest quality solder with 4% fine silver content.
- Halogen-free flux protects against etching of surfaces and warrants long term stability and corrosion resistance.
- Low melting temperature of 178° Fahrenheit.
- Diameter 0.8mm
- Weight 250 grams/ 0.575 lb.
- Length 73m/ 239'
|
WBT-SPACER
Spacer Block
|
|
- 19mm/ 3/4" spacing
- plastic insulating spacer block for binding posts.
|
