Response Curves | Suggested Alignments

No longer available

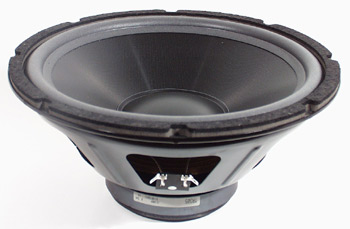

Swan 305 Specifications
Price $58.00
Size 12 inch
Fs 22.7
Mmd 110.4 Grams
Cms 415.7 m/n
Vas 166.5 Li ters
Rscc 5.2 W
Leap Krm 5.798 m W
Leap Kxm 27.301 mH
Leap Erm 0.834
Leap Exm 0.775
vcL 3.82mh @ 1K
Bl 14.74 Tm
Qms 9.654
Qes 0.401
Qts 0.385
Xmax 7.3 mm Peak
SD 0.0531 m 2
Surround Foam
Magnet 40 oz.
Voice Coil 2 Inch
Power Handling 200 watts
Freq. Response 25-1500 Hz
Efficiency 90 db 1w/1m
Uses Home Hi- Fi, Auto

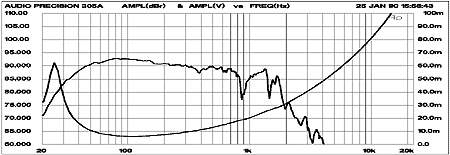

Swan 305 Response Curve
Swan 305 Suggested Alignments
Box Volume 56 Liter 70 Liter 90 Liter 120 Liter
Bass 1W /1m, F3 42 Hz 32 Hz 28 Hz 25 Hz
Box Vent Freq, Fb Sealed 24 Hz 24 Hz 24 Hz
Port Diameter Inches N/A 3 3 3
Port Length Inches N/A 11 8.2 5.6
