Madisound is exclusive U.S. distributor for the Silver Flute Wool/Paper composite cone drivers featuring aluminum cast frame, butyl rubber surround and vented pole piece. Large magnets and long excursion make these ideal for small to medium size bass reflex enclosures. The shielded drivers are useful for use near a CRT or if you are needing a sealed box woofer. |
| |
YAG-20

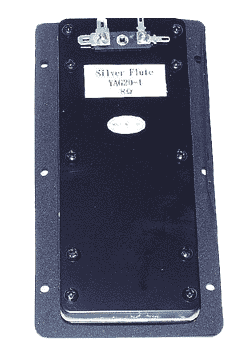

Ribbon Tweeter
Buy Now
-
Kapton film membrane with copper conductors
-
Copper mounting flange with flared wave guide
-
Controlled vertical dispersion
-
Neodymium magnet system
-
Linear response and impedance

|
Model |
Impedance |
Frequency Range |
dB |
Cutout |
Flange |
|
YAG-20 |
8 ohms |
3 kHz -20 kHz |
90 |
2.5"x6.12" |
3.5"x6.62" |
|

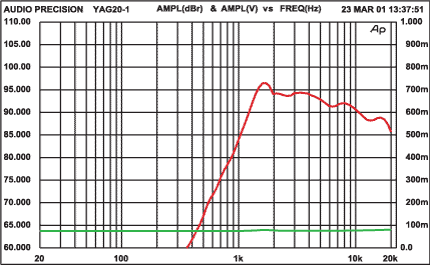

YAG-20
|
|
 |

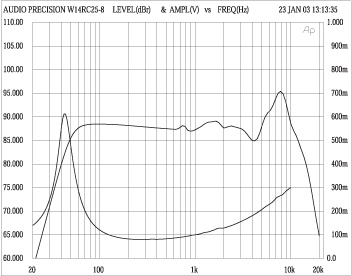

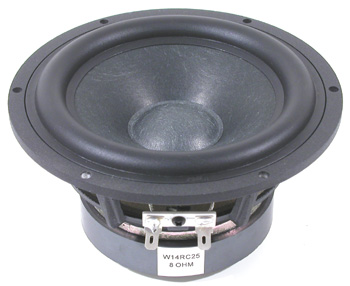

W14RC25
4 or 8 Ohm
5.25" Wool-filled Paper Cone Mid-Bass
- Die cast aluminum frame
- High loss rubber surround
- Oxygen-free copper voice coil
- Natural sound
- Low distortion
- Vented pole piece
|
Model |
Fs |
Imp. |
Sensitivity |
Qms |
Qes |
Qts |
Vas |
Cms |
Mms |
W14RC25-08 |
43 Hz |
8 ohms |
88dB |
3.269 |
0.389 |
0.348 |
18.92 |
1760.5 |
7.58g |
Re |
BL |
Sd sqM |
Krm |
Kxm |
Erm |
Exm |
Le |
VC Ø |
7.3 ohms |
6.24 |
0.0087 |
.876 |
11.55 |
.881 |
.691 |
.77 |
25 mm
|
Recommended Enclosure |
Sealed Box: F3 of 88Hz in 6 ltrs
Vented Box: F3 of 55Hz in 10 liters; 1.5" vent by 4.25" long |
| |
Model |
Fs |
Imp. |
Sensitivity |
Qms |
Qes |
Qts |
Vas |
Cms |
Mms |
W14RC25-04 |
42.5 Hz |
4 ohms |
91 dB |
3.699 |
0.306 |
0.282 |
18.99 |
1767.6 |
7.95g |
Re |
BL |
Sd sqM |
Krm |
Kxm |
Erm |
Exm |
Le |
VC Ø |
3.7 ohms |
5.07 |
0.0087 |
.913 |
8.30 |
.840 |
.684 |
.52 |
25 mm
|
Recommended Enclosure |
Sealed Box: F3 of 105Hz in 3.7 liters
Vented Box: F3 of 70Hz in 6 liters; 1.5" vent by 5.75" long |
X-max |
Power |
Flange |
Cutout |
Depth |
3.5mm |
60 watts |
142mm |
122mm |
67mm |
W14RC25-08
W14RC25-04
|
|
|

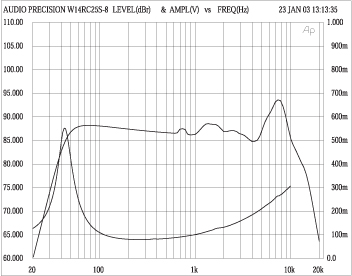

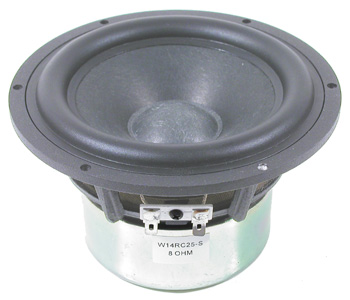

W14RC25-S
4 or 8 Ohm
5.25" Wool-filled Paper Cone Mid-Bass,
shielded magnet
|
Model |
Fs |
Impedance |
Sensitivity |
Qms |
Qes |
Qts |
Vas |
Cms |
Mms |
W14RC25-S-08 |
43 |
8 ohms |
87 dB |
3.371 |
0.458 |
0.403 |
18.88 |
1757.4 |
7.62g |
Re |
BL |
Sd sqM |
Krm |
Kxm |
Erm |
Exm |
Le |
VC Ø |
7.3 ohms |
5.76 |
0.0087 |
.967 |
11.13 |
.875 |
.697 |
.79 |
25 mm |
Recommended Enclosure |
Sealed Box: F3 of 75Hz in 9 liters
Vented Box: F3 of 55Hz in 10 liters with 1.5" vent by 5" long |
| |
Model |
Fs |
Impedance |
Sensitivity |
Qms |
Qes |
Qts |
Vas |
Cms |
Mms |
W14RC25-S-04 |
|
4 ohms |
|
|
|
|
|
|
|
Re |
BL |
Sd sqM |
Krm |
Kxm |
Erm |
Exm |
Le |
VC Ø |
|
|
0.0087 |
|
|
|
|
|
25 mm |
Recommended Enclosure |
Sealed Box:
Vented Box: |
X-max |
Power |
Flange |
Cutout |
Depth |
3.5mm |
60 watts |
142mm |
122mm |
75mm |
W14RC25-S-08
|
|
|

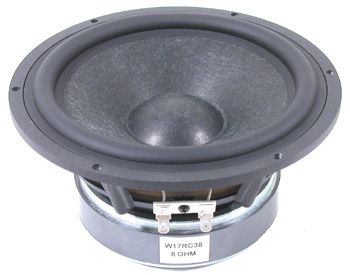

W17RC38
4 or 8 Ohm
6.5" Wool-filled Paper Cone Woofer
- 38 mm oxygen-free copper voice coil
- Die cast aluminum frame and former
- High loss rubber surround
- Natural sound
- Low distortion
- Vented pole piece
|
Model |
Fs |
Impedance |
Sensitivity |
Qms |
Qes |
Qts |
Vas |
Cms |
Mms |
W17RC-38-08 |
40 |
8 ohms |
88.5 dB |
1.517 |
0.359 |
0.290 |
28.20 |
1140 |
13.5g |
Re |
BL |
Sd sqM |
Krm |
Kxm |
Erm |
Exm |
Le |
VC Ø |
7.1 ohms |
8.26 |
0.0132 |
2.00 |
36.19 |
.836 |
.582 |
.94 |
38 mm |
Recommended Enclosure |
Sealed Box: F3 of 90Hz in 6 liters
Vented Box: F3 of 59Hz in 12 liters, 2" vent by 6" long |
| |
Model |
Fs |
Impedance |
Sensitivity |
Qms |
Qes |
Qts |
Vas |
Cms |
Mms |
W17RC-38-04 |
37.5 |
4 ohms |
91.5 dB |
1.524 |
0.284 |
0.239 |
25.6 |
1036 |
17.4g |
Re |
BL |
Sd sqM |
Krm |
Kxm |
Erm |
Exm |
Le |
VC Ø |
3.7 ohms |
7.31 |
0.0132 |
1.37 |
17.81 |
.818 |
.599 |
.53 |
38 mm |
Recommended Enclosure |
Sealed Box: F3 of 112Hz in 3.5 liters
Vented Box: F3 of 70Hz in 6 liters, 1.5 " vent by 5.5 " long |
X-max |
Power |
Flange |
Cutout |
Depth |
5mm |
80 watts |
167mm |
147mm |
75mm |
W17RC38-08
W17RC38-04
|
|
|

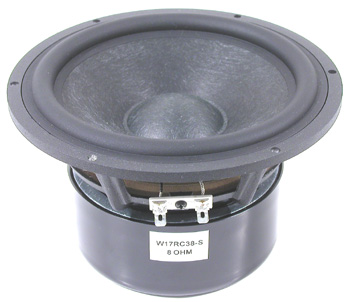

W17RC38-S
4 or 8 Ohm
6.5" Wool-filled Paper Cone Woofer
shielded magnet
- Magnetically shielded
- 38 mm oxygen-free copper voice coil
- Die cast aluminum frame and former
- High loss rubber surround
- Natural sound
- Low distortion
|
Model |
Fs |
Impedance |
Sensitivity |
Qms |
Qes |
Qts |
Vas |
Cms |
Mms |
W17RC38-S-08 |
40 |
8 ohms |
88.5 |
1.450 |
0.401 |
0.314 |
24.30 |
982.3 |
15.09g |
Re |
BL |
Sd sqM |
Krm |
Kxm |
Erm |
Exm |
Le |
VC Ø |
7.1 ohms |
8.33 |
0.0132 |
2.42 |
30.32 |
.815 |
.597 |
.89 |
38 mm |
Recommended Enclosure |
Sealed Box: F3 of 90Hz in 6 liters
Vented Box: F3 of 54Hz in 13 liters, 2" vent by 6" long |
| |
Model |
Fs |
Impedance |
Sensitivity |
Qms |
Qes |
Qts |
Vas |
Cms |
Mms |
W17RC38-S-04 |
|
4 ohms |
|
|
|
|
|
|
|
Re |
BL |
Sd sqM |
Krm |
Kxm |
Erm |
Exm |
Le |
VC Ø |
| |
|
0.0132 |
|
|
|
|
|
38 mm |
Recommended Enclosure |
Sealed Box:
Vented Box: |
X-max |
Power |
Flange |
Cutout |
Depth |
5mm |
80 watts |
167mm |
147mm |
93mm |
W17RC38S-08
|
|
|

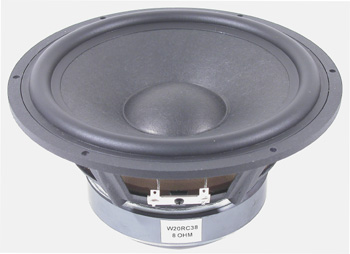

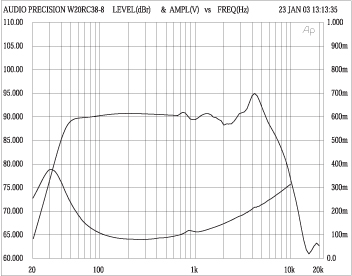

W20RC38
4 or 8 Ohm
8" Wool-filled Paper Cone Woofer
- 38 mm oxygen-free copper voice coil
- Die cast aluminum frame and former
- High loss rubber surround
- Natural sound
- Low distortion
- Vented pole piece
|
Model |
Fs |
Impedance |
Sensitivity |
Qms |
Qes |
Qts |
Vas |
Cms |
Mms |
W20RC38-08 |
30.7 |
8 ohms |
90.5 |
1.297 |
0.283 |
0.233 |
83.31 |
1281 |
20.86g |
Re |
BL |
Sd sqM |
Krm |
Kxm |
Erm |
Exm |
Le |
VC Ø |
7.2 ohms |
10.13 |
0.0214 |
1.65 |
32.79 |
.853 |
.591 |
.92 |
38 mm |
Recommended Enclosure |
Sealed Box: F3 of 90 in 10 liters
Vented Box: F3 of 60Hz in 18 liters, 2" vent by 4" long |
| |
Model |
Fs |
Impedance |
Sensitivity |
Qms |
Qes |
Qts |
Vas |
Cms |
Mms |
W20RC38-04 |
31 |
4 ohms |
93.5 |
1.511 |
0.274 |
0.232 |
72.27 |
1111 |
23.69g |
Re |
BL |
Sd sqM |
Krm |
Kxm |
Erm |
Exm |
Le |
VC Ø |
3.7 ohms |
7.90 |
0.0214 |
1.32 |
17.64 |
.819 |
.596 |
.52 |
38 mm |
Recommended Enclosure |
Sealed Box: F3 of 95Hz in 9 liters
Vented Box: F3 of 60Hz in 15 liters, 2" vent by 4.75" long |
X-max |
Power |
Flange |
Cutout |
Depth |
5mm |
100 watts |
203mm |
183mm |
86mm |
W20RC-38-08
W20RC-38-04
|
|
| |

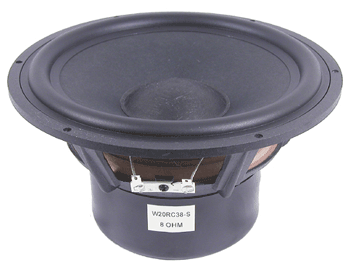

W20RC38-S
8 Ohm
8" Wool-filled Paper Cone Woofer
with Shielded magnet
- 38 mm oxygen-free copper voice coil
- Die cast aluminum frame and former
- High loss rubber surround
- Natural sound
- Low distortion
|
Model |
Fs |
Impedance |
Sensitivity |
Qms |
Qes |
Qts |
Vas |
Cms |
Mms |
W20RC38-S-08 |
29.5 |
8 ohms |
88 |
1.81 |
0.53 |
0.41 |
84.7 |
1302 |
22.3g |
Re |
BL |
Sd sqM |
Krm |
Kxm |
Erm |
Exm |
Le |
VC Ø |
7.2 ohms |
7.57 |
0.0214 |
1.75 |
25.34 |
.849 |
.620 |
.92 |
38 mm |
Recommended Enclosure |
Sealed Box: F3 of 68Hz in 19 liters
Vented Box: F3 of 45Hz in 30 liters, 2" vent by 3.75 " long |
X-max |
Power |
Flange |
Cutout |
Depth |
5mm |
100 watts |
203mm |
183mm |
103mm |
W20RC-38-S-08
|
|
