SEAS State of the Art
Excel Premium
State of the Art Quality
The EXCEL product range was developed to satisfy the most critical
demands of audiophiles and music lovers alike.
EXCEL cone drivers range in diameter from 12 to 26 cm., and are built
on rugged and precise injection molded zinc baskets. Magnesium and
NEXTEL coated paper cone materials are available exclusively in the
EXCEL line.
EXCEL Magnet Systems
EXCEL magnet systems utilize heavy copper rings above and below the
gap that reduce flux modulation and eddy current distortion.
Furthermore, a solid metal phase plug is used to facilitate heat transfer
from the voice coil and pole piece to the outside air, thereby
substantially reducing the coil temperature and subsequent voltage
sensitivity modulation at high power levels.
EXCEL Tweeters
EXCEL tweeters are based on molded zinc or machined
aluminum front plates that precisely align a field-replaceable
diaphragm assembly to the magnet system and die-cast rear chamber.
The result is a highly rigid, virtually non-resonant assembly that
doubles as an effective heat sink for the tweeter voice coil.
EXCEL tweeters are supplied with diaphragms made from textile fabric,
aluminum, or high purity magnesium. All two-piece diaphragm
assemblies utilize the SEAS exclusive SONOMAX surround material. Voice
coils are wound from special high temperature wire, affixed to the input
terminals using braided tinsel leads.
All EXCEL tweeters incorporate advanced motor designs. The
“Millennium” tweeter was the first to take advantage of the SEAS patented
Hexadym magnet system; a major advancement in transducer motor
technology. The Hexadym system, based on 6 radially magnetized
NdFeB blocks, allows for generous venting of the air volume behind the
dome surround and inside the voice coil cavity, eliminating cavity
resonances, and high-speed air noise. The SEAS new “Crescendo” and
“Magnum” (see below) tweeters lift this technology even further by providing a
stronger magnetic flux, resulting in tweeters with very high sensitivity.
Finally, all EXCEL drivers are equipped with gold plated terminals for
low contact resistance and high reliability.

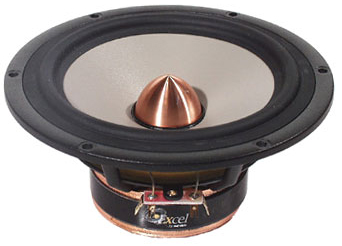

Magnesium Cone Woofer
with Copper Phase Plug
Description: This SEAS EXCEL 7" woofer features a light, yet stiff magnesium cone for bass precision and midrange detail. The cone is attached to the magnesium cast frame by a natural rubber surround that shows no sign of midrange (edge) resonance. Heavy copper coils mounted above and below the T-shaped pole piece reduce non linear and inter-modulation distortion. The raised spider keeps the voice coil from bottoming out and also reduces noise caused by mechanical distortion. A large magnet system is used for improved sensitivity and transient response.
|

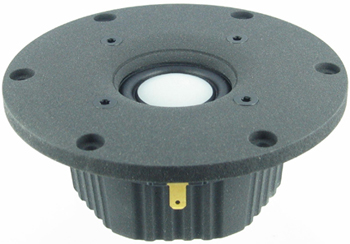

"Magnum" EXCEL Tweeter
Description: The “MAGNUM” is a 25mm magnesium dome tweeter with a patented Neodymium based magnet system. It is the tweeter of choice for those who seek extremely precise and realistic sound reproduction combined with a relatively low crossover frequency.
|
