Fountek Altitude 3500
Integrated Valve Amplifier, 32 Watts @ 1 KHz into 8ohm

The Altitude 3500 is the culmination of many years
of development and refinement. Component quality
and circuit design have been carefully chosen to
deliver the highest quality of musical reproduction,
with accurate and emotional delivery of the sound
stage.
The Altitude 3500 Integrated valve amplifier
features only the best available components with the
shortest and cleanest signal paths possible with direct
coupling used on the input stages to improve signal
transit response.
High quality electrolytic and non electrolytic
capacitors have been used throughout the Altitude
3500 amplifier in critical signal areas to ensure instant
energy for fast dynamic midrange and top end
transients with tight very dynamic bass performance
normally not found on valve amplifiers.
By using high voltages on the plates of the output
valves, we are able to run them at lower currents,
which will result in longer life for the output valves
and less reliance on bias adjustment with age.
- CHANNELS: 2 channel
- INPUTS: 4 CD/ TUNER / AUX1 / AUX2 (1,2,3,4)
- INPUT IMPEDANCE: 100K ohms
- INPUT SENSITIVITY: 350mV rms @ 1Khz
- OUTPUT POWER per channel: 32 Watts @ 1 KHz into 8ohm
- OUTPUT CLASS: AB push pull
- OUTPUT: 4 or 8 ohm speaker load 0-4-8 ohms T.H.D. less than 1%
- FREQUENCY RESPONSE: 15Hz- 50 KHz +- 0.5 dB S/N Ratio : 89dB/A
- VALVES: 2 x 12AT7 Twin triode 2 x 12AU7 Twin triode 4 x EL34 Pentode EL34 (Output Valves are matched pairs)
- FUSE: 240V 3.15A
- CHASSIS: Silver Brushed Aluminum
- DIMENSIONS: 350mm*190mm*320mm
- NET WEIGHT: 18Kgs
- GROSS WEIGHT: 21Kgs
Altitude 3500 PDF

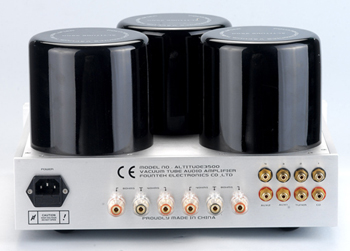

Altitude 3500 Amp: rear view (above)

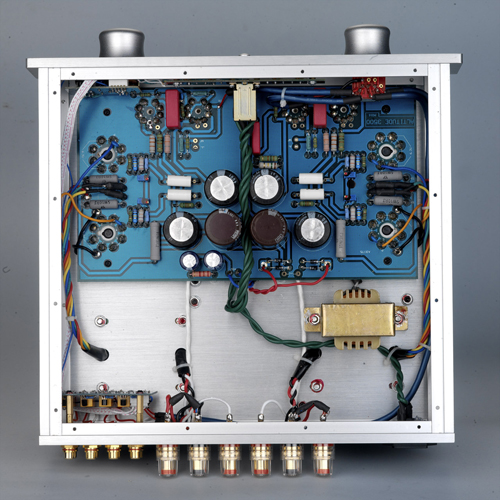

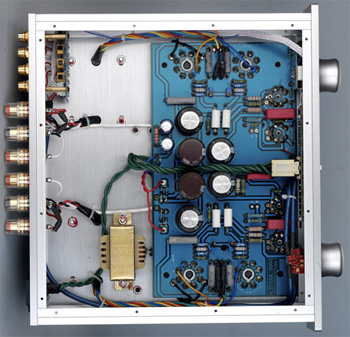

Altitude 3500 Amp: top view inside chassis (above)
|
|
