ClarityCap Capacitors

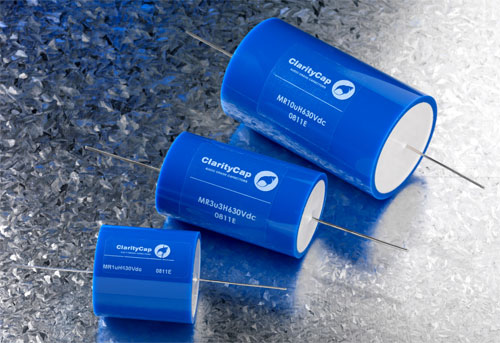

ClarityCap MR
Range
Polypropylene Capacitors
| 0.10 |
MR.1 |
630 |
25 x 25 |
| 0.22 |
MR.22 |
630 |
35 x 25 |
| 0.33 |
MR.33 |
630 |
35 x 25 |
| 0.47 |
MR.47 |
630 |
45 x 25 |
| 0.68 |
MR.68 |
630 |
45 x 25 |
| 0.82 |
MR.82 |
630 |
40 x 38 |
| 1.00 |
MR1.0 |
630 |
40 x 38 |
| 2.20 |
MR2.2 |
630 |
50 x 38 |
| 2.70 |
MR2.7 |
630 |
65 x 38 |
| 3.10 |
MR3.1 |
630 |
65 x 38 |
| 3.30 |
MR3.3 |
630 |
65 x 38 |
| 3.90 |
MR3.9 |
630 |
50 x 50 |
| 4.10 |
MR4.1 |
630 |
50 x 50 |
| 4.70 |
MR4.7 |
630 |
50 x 50 |
| 5.60 |
MR5.6 |
630 |
65 x 50 |
| 6.20 |
MR6.2 |
630 |
65 x 50 |
| 6.80 |
MR6.8 |
630 |
85 x 50 |
| 8.20 |
MR8.2 |
630 |
85 x 50 |
| 10.00 |
MR10 |
630 |
85 x 50 |
| 12.00 |
MR12 |
630 |
85 x 76 |
| 15.00 |
MR15 |
630 |
85 x 76 |
| 18.00 |
MR18 |
630 |
85 x 76 |
| 22.00 |
MR22 |
630 |
85 x 76 |
| 27.00 |
MR27 |
630 |
85 x 76 |
- Tolerance ±3% standard.
- Dissipation factor ≤ 0.001 @ 1KHz & 20±3°C
- Insulation resistance ≥ 104MΩ- @ rated voltage & 20±3°C
- Rated voltage 630Vdc
- Dielectric absorption ≤ 0.1% @ 20±3°C
- Temperature range -55 to +100°C
- Environmental category 55/100/56 to EN 60068 - 1 (IEC 68 - 1)
- Proof voltage test 1.5 x rated voltage for 30s. Not to be repeated
- Vibration EN 60068 - 2 - 6 (EIC 68 - 2 - 6) Test Fc
100 to 500 Hz 0.75mm or 98m/s2
- Bump EN 60068 - 2 - 29 (EIC 68 - 2 - 29) Test Eb
400m/s2 1000±10 bumps
The MR range of capacitors is the result of an extensive ground
breaking 2 year research programme into audio grade capacitors.
The resulting capacitor is, we believe at the leading edge of today’s high quality audio grade capacitors.
The component is manufactured in such a way to substantially reduce the
negative effects of resonance on sonic quality which is inherent in a wound component. This results in a sonic characteristic which is difficult to equal.
Manufactured from metallised polypropylene film the component is housed in a coloured acrylic tube and encapsulated in an epoxy resin to assist in the overall sonic performance.
Read the MR White Paper.
Images from the MR White Paper
Figure 1: Basic equivalent circuit of capacitor
Figure 2: Phasor diagram of capacitor equivalent circuit

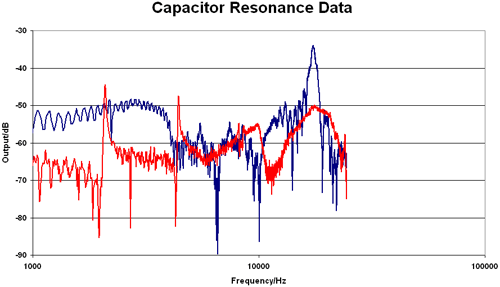

Figure 3: Capacitor Resonance Data

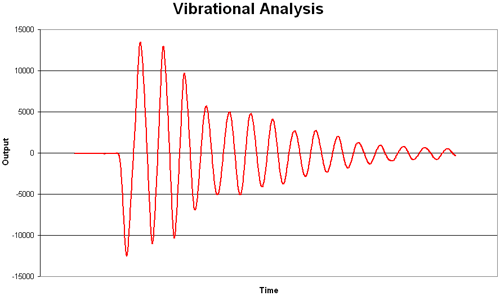

Figure 4: Vibrational Analysis
Figure 5: Listener's Capacitor Preference
Figure 6: Listener's Experience of Clarity and Spatial Information

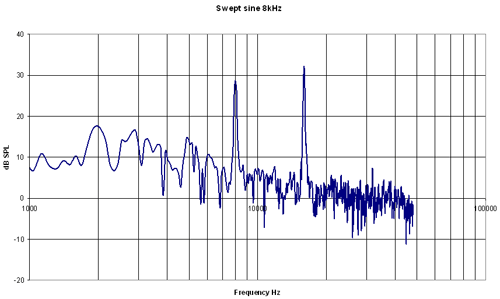

Figure 7: SPL (db) vs. Frequency (Hz)

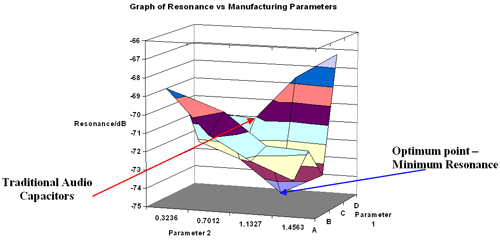

Figure 8: Resonance vs. Manufacturing Parameters.
|
|
