AuraSound Speakers
-
AuraSound, Inc. specializes in the production of high SPL, bass-rich, low distortion sound from compact transducers.
-
AuraSound's Neo-Radial Technology (NRT)- a unique teardrop-shaped motor structure- offers unconventional design and unsurpassed efficiency and performance. This allows louder play and more bass while generating substantially less distortion than ordinary loudspeakers.
-
Designed for extremely long throw, high efficiency, and high power capacity.
-
Unsurpassed linearity and exceptionally low harmonic distortion.
-
Aluminum alloy cones: much higher stiffness-to-weight ratio than traditional paper or polypropylene.
-
Virtually no magnetic leakage, even better than the best shielded drivers. Ideal for home theater applications.
-
Lower weight and smaller size.
-
Underhung voice coil totally controlled by the magnetic system.
-
AuraSound NRT Subwoofers set a new standard for bass performance!
NS10-513-4A 10" Subwoofer
10" high-output subwoofer featuring:- High-temperature neodymium ring magnet in a patented underhung geometry- 3" edgewound aluminum voice coil- Dual over-size spiders- Super rigid aluminum cone and dust cap- Long-throw rubber surround- 2" peak-peak maximum cone excursion- 30Hz - 1kHz frequency bandwidth
Aurasound 10" high-output subwoofer
Nominal Diameter . . . . . . . . . . . . . . .10 inches (254 mm)
Nominal Impedance (Z) . . . . . . . . . . 4 ohms
Sensitivity, 1W/1m (E) . . . . . . . . . . . 84 dB @ 200 Hz
Power Capacity, RMS (Pe) . . . . . . . . 200 W
Power Capacity, Peak . . . . . . . . . . . 800 W
Frequency Range (-10dB) . . . . . . . . Fo - 4 kHz
Minimum Impedance . . . . . . . . . . . . 5 ohms
Voice Coil Diameter . . . . . . . . . . . . . 51.3 mm
Voice Coil Winding Length (h) . . . . . 12 mm
Voice Coil Number of Layers (n) . . . . 4
Voice Coil Former Material . . . . . . . . Kapton
Voice Coil Wire Composition . . . . . . Copper
Magnetic Material . . . . . . . . . . . . . . Neodymium radial
Stray Flux Shielding . . . . . . . . . . . . . Inherent
Magnetic Gap Depth (He) . . . . . . . . 32 mm
Cone Material . . . . . . . . . . . . . . . . . Aluminum
Surround Material . . . . . . . . . . . . . . Injecton molded rubber
Polarity, Outward Motion . . . . . . . . . Positive voltage on (+) terminal
Net Weight . . . . . . . . . . . . . . . . . . . . 4.5 kg
Thiele / Small Parameters
Resonant Frequency (Fo) - Fs . . . . . 29 Hertz
Voice Coil DC Resistance - Re . . . . . 3.04 ohms
Total Q - Qts . . . . . . . . . . . . . . . . . . 0.34
Mechanical Q - Qms . . . . . . . . . . . . 9.4
Electrical Q - Qes . . . . . . . . . . . . . . 0.35
Equivalent Volume of Air - Vas . . . . . 53.6 L
Radiating Piston Area - Sd . . . . . . . . 346 cm
Electrical / Mechanical Parameters
Flux Density x Length - BL . . . . . . . . 12.2 Tesla-meters
Compliance - Cms . . . . . . . . . . . . . . 318 mm/N
Total Mass - Mms . . . . . . . . . . . . . . 95.5 grams
NS12-513-4A 12" Subwoofer
12" high-output subwoofer featuring:- High-temperature neodymium ring magnet in a patented underhung geometry- 3" edgewound aluminum voice coil- Dual over-size spiders - Super rigid aluminum cone and dust cap- Long-throw rubber surround- 2" peak-peak maximum excursion- 25Hz - 1kHz frequency bandwidth
NS12-513-4A 12" high-output subwoofer
Nominal Diameter . . . . . . . . . . . . . . .12 inches (305 mm)
Nominal Impedance (Z) . . . . . . . . . . 4 ohms
Sensitivity, 1W/1m (E) . . . . . . . . . . . 85 dB @ 200 Hz
Power Capacity, RMS (Pe) . . . . . . . . 200 W
Power Capacity, Peak . . . . . . . . . . . 800 W
Frequency Range (-10dB) . . . . . . . . Fo - 6 kHz
Minimum Impedance . . . . . . . . . . . . 4 ohms
Voice Coil Diameter . . . . . . . . . . . . . 51.3 mm
Voice Coil Winding Length (h) . . . . . 12 mm
Voice Coil Number of Layers (n) . . . . 4
Voice Coil Former Material . . . . . . . . Kapton
Voice Coil Wire Composition . . . . . . Copper
Magnetic Material . . . . . . . . . . . . . . Neodymium radial
Stray Flux Shielding . . . . . . . . . . . . . Inherent
Magnetic Gap Depth (He) . . . . . . . . 32 mm
Cone Material . . . . . . . . . . . . . . . . . Aluminum
Surround Material . . . . . . . . . . . . . . Injecton molded rubber
Polarity, Outward Motion . . . . . . . . . Positive voltage on (+) terminal
Net Weight . . . . . . . . . . . . . . . . . . . . 4.8 kg
Thiele / Small Parameters
Resonant Frequency (Fo) - Fs . . . . . 23 Hertz
Voice Coil DC Resistance - Re . . . . . 2.86 ohms
Total Q - Qts . . . . . . . . . . . . . . . . . . 0.37
Mechanical Q - Qms . . . . . . . . . . . . 9.1
Electrical Q - Qes . . . . . . . . . . . . . . 0.39
Equivalent Volume of Air - Vas . . . . . 127 L
Radiating Piston Area - Sd . . . . . . . . 503 cm
Electrical / Mechanical Parameters
Flux Density x Length - BL . . . . . . . . 12 Tesla-meters
Compliance - Cms . . . . . . . . . . . . . . 356 mm/N
Total Mass - Mms . . . . . . . . . . . . . . 137 grams |

NS Extended Range
High-output, full-range loudspeakers utilizing an underhung short coil geometry, rubberized cloth surround, aluminum cone, NRT neodymium radial magnet structure.
|
Model
(PDF linked) |
Description |
Fs
Hz |
Re
Ohms |
Qms |
Qes |
Qts |
Vas Liters |
Xmax
peak mm |
dB
|
|
|
1" Full Range |
220 |
6.3 |
2.1 |
1.1 |
0.7 |
0.04 |
1.5 |
78 |
|
|
2" Full Range |
250 |
6.4 |
4.72 |
0.80 |
0.68 |
0.1 |
3 |
85 |
|
| |
3" Extended Range |
80 |
7.6 |
8.0 |
0.73 |
0.67 |
1.25 |
5 |
81 |
|
| |
4" Extended Range |
57 |
3.6 |
7.0 |
0.41 |
0.39 |
3.78 |
6 |
84 |
|
| |
4" Extended Range |
62 |
6.23 |
7.4 |
0.47 |
0.44 |
3.2 |
6 |
84 |
|

Shallow 8" Woofer
Front mounted NRT neodymium radial magnet. Paper cone with foam surround. Protrudes 3/4" from the from and depth is only 1-3/8" (plus room for voice coil travel)
|
Model
|
Description |
Fs
Hz |
Re
Ohms |
Qms |
Qes |
Qts |
Vas Liters |
Xmax
peak mm |
dB
|
|
| NSF8-495-8B |
8" woofer |
41.6 |
6.57 |
5.1 |
0.52 |
0.47 |
16.3 |
6 |
86 |
|
|
794 Series Subwoofer
High energy Neodymium NRT magnet structure. 2" peak-to-peak excursion. 3" edgewound aluminum voice coil. Aluminum cone assembly with oversized rubber surround. Dual regressive spider. Cast aluminum basket. Copper inductance sleeve. Dual gold-plated screw terminals.
|
Model
(PDF linked) |
Description |
Fs
Hz |
Re
Ohms |
Qms |
Qes |
Qts |
Vas Liters |
Xmax
peak mm |
dB
|
|
|
10" Subwoofer |
28 |
3.3 |
7.7 |
0.40 |
0.38 |
36.8 |
25.4 |
85.7 |
|
|
12" Subwoofer |
24 |
3.2 |
7.8 |
0.41 |
0.39 |
88.8 |
25.4 |
87.4 |
|

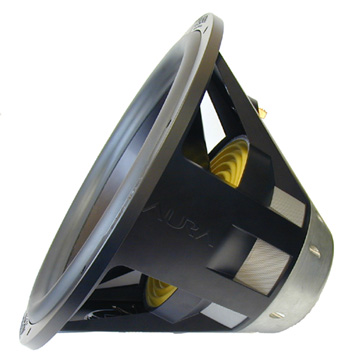

992 Series Subwoofer
High energy Neodymium NRT magnet structure. 2.5" peak-to-peak excursion. 4" edgewound aluminum voice coil. Aluminum cone assembly with oversized rubber surround. Dual regressive spider. Cast aluminum basket. Copper inductance sleeve. Dual gold-plated screw terminals.
|
Model
(PDF linked) |
|
Fs
Hz |
Re
Ohms |
|
|
Qts |
Vas Liters |
Xmax
peak mm |
dB
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
IWS-Micro In-Wall Speaker
-
1.25" Inverted Dome Full Range Driver
-
Designed for installation in a single gang box (not included)
-
20W RMS power handling
-
Frequency Range 150Hz to 20kHz + 6dB
-
8 ohm impedance
-
Inherently magnetically shielded
-
33mm voice coil diameter
-
84dB
-
3mm x-max
Suggested uses:
Ambient sound in waiting rooms and offices, Home theater in-wall arrays, Aircraft, Theme parks, Sound for displays in museums, art displays, etc.
|
|
|
