Alpha-Core

HT, MI, & AG Speaker Cable Pairs

Jump to Goertz cable prices below.

Goertz HT (Home Theater)

Based on the patented Goertz technology and dedicated for home theater applications. Economically priced cable containing two flat solid conductors enclosed in the same high grade film insulation and the MI and AG series. Jacketed with a white paintable polymer. Unlike any other cable in the market, the flat conductors may be notched to form integral spades which will fit into the screw terminals used in the majority of home theater components. Fantastic detail and 3-D imaging as with all Goertz cables.

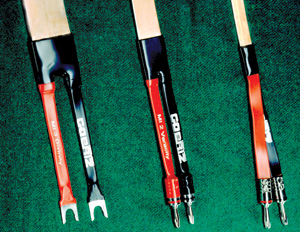

MI 1 2 3MI/AG Series

Goertz MI 1(Copper)/AG1 (Solid Silver)
The original Goertz cable, MI 1 in 13 gauge (AWG) solid Oxygen Free Copper (OFC) or 12 gauge AG 1 in solid High Purity Silver. The heavy, high purity Oxygen Free Copper (OFC) or solid high purity silver ribbons are sandwiched together, separated only by micro-thin layers of film insulation. The minute amount of active dielectric also provides rapid break-in; now audiophiles don't have to wait tens of hours to break in their cables, Goertz cables produce immediate results!

Goertz MI 2(Copper)/AG2 (Solid Silver)
MI 2 Heavy 10 gauge OFC copper or 9 gauge AG 2 solid silver cabling for improved bass and power handling over the remarkable Goertz MI 1. Great reviews confirm that this remarkable cable really delivers; superb bass control, vivid mid-range, and excellent high frequency extension combine with rejection of interference and no break-in period. Simply great value.

Goertz MI 3 (Cooper)/AG3 (Solid Silver)
Alpha-Core's "Big Boy" 7 gauge speaker cable; the answer for powerful audiophile systems. MI 3 was designed for high power amplifiers driving full range speakers. Perhaps the best speaker cable made today, the MI 3 delivers sublime clarity, dynamics, and definition throughout the audio spectrum. The extreme low DC resistance ensures diaphragm control for tight, powerful bass and mid-range, and the low inductance carries distortion free highs frequencies and crucial harmonics for outstanding imaging and depth perception.

Goertz 7 gauge MI 3 cables were developed at the request of Dan D'Agostino of Krell Industries and other customers who were seeking a speaker cable to complement today's powerful amplifiers. Double the cross section of Goertz MI 2 and AG 2, this newcomer features two solid conductors each measuring 1.25" by 0.012". As in Goertz MI 1 and MI 2, the micro-thin film dielectric means minimum break-in time.

The 7 AWG cable is available in two versions: The MI 3 'Divinity' in OFC copper, and the AG 3 'Divinity' in solid fine silver. Both are supplied with four inch user-friendly pigtails, and both feature Alpha-Core's unique solid fine silver spade connectors to fit all high-end binding posts. Goertz AG 3 is arguably the heaviest solid fine silver cable ever made. An eight foot pair contains more than a pound of 99.99% pure silver. So, for that extra muscle to drive the really powerful systems, Goertz MI 3 or MI AG 3 is the answer, The Alpha-Core "Big Boys" deliver punch in the bass and a sound so revealing that we maybe ought to mark them "Adults Only".

NOTE: The numerals 1,2,and 3 after the MI and AG designations relate to the DC resistance, i.e. AWG or gauge. Configuring for BI-WIRING: With the flat Goertz cables two wires are united into one pair of connectors at the amp end, each cable having its own pair of connectors at the speaker end. The Serpent series, Python and Boa each have four conductors and can be configured for single-wiring by paralleling the conductors two and two, and for bi-wiring inside the same cable by terminating the conductors individually at the speaker. Bi-wired pairs can be selected by replacing MI2 with two MI1's or MI3 with two MI2's.

Goertz Cable Prices

# Cu/Ag Also Called A
W
G
SINGLE
per foot
BI-WIRE
per foot
HT Copper Home Theater 15 8.39 16.77
MI1 Copper Center Stage 13 12.40 24.80
MI2 Copper Veracity 10 21.50 43.00
MI3 Copper Divinity 7 53.00 106.00
AG1 Silver Center Stage 12 73.20 146.40
AG2 Silver Veracity 9 128.70 257.40
AG3 Silver Divinity 7 275.60 550.00

Termination Prices

Add Termination Costs SINGLE
per foot
BI-WIRE
per foot
Rhodium Spades, Bananas, Pins 40.00 63.00
Silver Spades 58.00 85.00

Cable Connectors

Model Price
(4) Rhodium Spades 24.00
(4) Rhodium Bananas 24.00
(4) Rhodium Pins 24.00
(4) Silver Spades Kit - 1/2" x 5/16" 40.00
(4) Silver Spades Kits - 5/16" x 5/32" 27.00

"The Goertz...are the cables I would choose because they bring me more musical enjoyment than any I have heard."
    - Richard E. Jensen, Ultimate Audio, Fall 1999]
