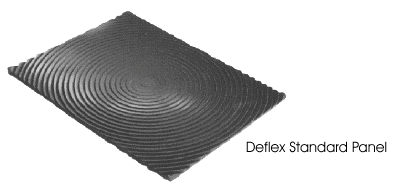

| Standard Panel |
$ 11.00 each |
| Sub-woofer Panel |
$ 20.00 each |
| Foculpods |
$ 20.00 set of 4 |
| Weldbond |
$ 2.70 4 oz. bottle |
| We recommend Weldbond as an adhesive to attach the Panels. Wash the panel first; let dry; smear Weldbond on panel and cabinet; when tacky, attach. |
|
| |
|
| Specification |
Standard Panel |
Subwoofer Panel |
| Material |
Advanced polymer |
Advanced polymer |
| Color |
Charcoal grey |
Charcoal grey |
| Surface emulation |
Spherical concave |
Spherical concave |
| Defined radius - nominal |
200 mm |
300 mm |
| Focal point - nominal |
100 mm |
150 mm |
| Thickness at center |
5 mm (maximum) |
12 mm (maximum) |
| Max. edge thickness |
12 mm |
12 mm |
| Overall dimensions |
280mm x 210mm |
340 mm Round |
| Density / hardness |
1.36 / < 15º A |
1.36 / < 15º A |
| Rebound resilience |
Less than 15% |
Less than 15% |
|
| |
 |
| " THE ONLY CURE FOR BOX NOISE AND STANDING WAVES "
The surface emulation has been carefully designed to help eliminate standing waves. Independent tests on MLSSA show an energy gain of over 50%.
|
| |
| "...The special surface pattern reduces standing waves to cure boxiness and resonance without killing the vitality of the sound..."
"...expect tighter cleaner bass, crisper articulation, and an increase in liveliness without loss of control..."
"...The result was sharper imaging, wider dynamics and a more natural sound..."
HI-FI Choice - January 1994 |
| |
| "...Deflex panels seemed to give greater tightness and control, improved internal clarity, and better pitch definition - all without deadening the sound in any way..."
Audiophile - January 1994
|
