Madisound Speaker Kits

Loki Speaker Kit featuring SEAS H1333

Buy Loki Coaxial Speaker Kit with Natural Cherry Cabinet
Buy Loki Coaxial Speaker Kit without Cabinet

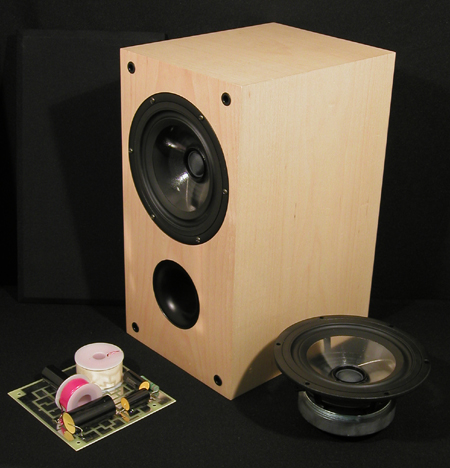

Seas Coaxial and Crossover with MD-04 Cabinet (Maple)

• This speaker sounds fantastic for either home theater or audio
• It could be used standing up or on its side
• Cabinet dimensions are 8" wide by 15" tall by 11" deep for 12 liters internal volume
• Comes pre-cut for the Seas T18RECOAX, any version
• Also has installed a 2" flared port, 6.5" long
• The back is cut for our DB-cup terminal cup (not included)

This cabinet will work with the following T18RECoax drivers:

• T18RE/XFCTV2 (H1333), 7" coaxial, clear cone - F3 of 54Hz - Shielded Magnet
• T18REX/XFC (H1353), 7" coaxial, clear cone - F3 of 54Hz

To order the parts instead of the kit (per channel):

• Natural Cherry Cabinet (MD-04)
• T18RECoax Speaker (see above)
• DB-CUP  input cup
• Crossover for H1144, H1353, H1333
• Large handful of fiberfill or other stuffing material
  • (3) Deflex panels (one for back wall, 1/2 for top, bottom & sides)
